Aperçu ProduitsTissu de fibre de verre de papier d'aluminium

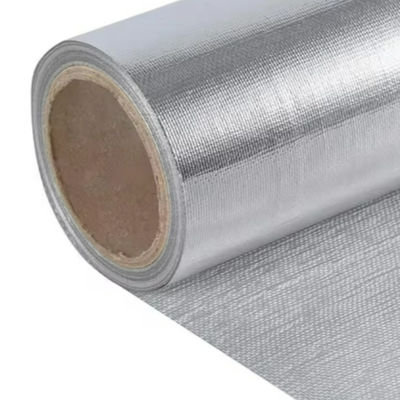

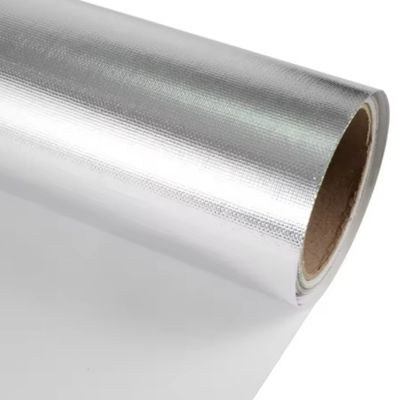

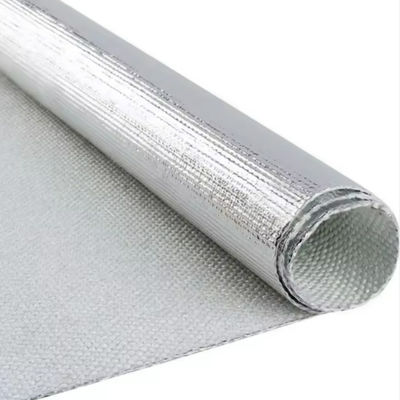

Flame-retardant Foil-Glass Cloth Facing with 10×9 Mesh Glass Cloth 7 um Al Foil and 118 gsm Basis Weight for HVAC and Pipe Insulation

Flame-retardant Foil-Glass Cloth Facing with 10×9 Mesh Glass Cloth 7 um Al Foil and 118 gsm Basis Weight for HVAC and Pipe Insulation

Flame-retardant Foil-Glass Cloth Facing with 10×9 Mesh Glass Cloth 7 um Al Foil and 118 gsm Basis Weight for HVAC and Pipe Insulation
Flame-retardant Foil-Glass Cloth Facing with 10×9 Mesh Glass Cloth 7 um Al Foil and 118 gsm Basis Weight for HVAC and Pipe Insulation Flame-retardant Foil-Glass Cloth Facing with 10×9 Mesh Glass Cloth 7 um Al Foil and 118 gsm Basis Weight for HVAC and Pipe Insulation Flame-retardant Foil-Glass Cloth Facing with 10×9 Mesh Glass Cloth 7 um Al Foil and 118 gsm Basis Weight for HVAC and Pipe Insulation Flame-retardant Foil-Glass Cloth Facing with 10×9 Mesh Glass Cloth 7 um Al Foil and 118 gsm Basis Weight for HVAC and Pipe Insulation

Image Grand :  Flame-retardant Foil-Glass Cloth Facing with 10×9 Mesh Glass Cloth 7 um Al Foil and 118 gsm Basis Weight for HVAC and Pipe Insulation

Détails sur le produit:
Lieu d'origine: CHINE
Numéro de modèle: AG-R701
Conditions de paiement et expédition:
Quantité de commande min: 6000 m²
Prix: basing quantity
Détails d'emballage: PALETTE
Délai de livraison: environ 30 jours ouvrables
Conditions de paiement: T / t
Capacité d'approvisionnement: 500000 m2

Flame-retardant Foil-Glass Cloth Facing with 10×9 Mesh Glass Cloth 7 um Al Foil and 118 gsm Basis Weight for HVAC and Pipe Insulation

description de
Épaisseur de papier d'aluminium: 7 euh Poids de base: 118 g/m²
Maille en tissu de verre: 10x9 RÉSISTANCE À LA TRACTION - DM: 225N/25mm
Résistance à la traction - XD: 150N/25mm Force éclatée: 100 N/c㎡
Perméance (WVTR): 5,75 ng/Ns Stabilité dimensionnelle: Moins de 0,5%
Émission: 0,03 Largeur disponible de petit pain: 1.0m, 1.2m, 1.25m, 1.3m
Longueur: 50m Incendie: Classe O - Réussi
Mettre en évidence:

10×9 Mesh Glass Cloth Foil-Glass Cloth Facing

,

7 um Al foil thickness Aluminum Foil Fiberglass Cloth

,

118 gsm Basis Weight Foil-Glass Cloth Facing

Flame-retardant Foil-Glass Cloth Facing With 10×9 Mesh Glass Cloth
The Flame-retardant Foil-Glass Cloth Facing is a utility-grade composite facing material designed for insulation systems requiring high strength and flame retardancy. This product features a unique composite structure that laminates a thin aluminum foil to a high-strength fiberglass cloth using a flame-retardant adhesive. It not only possesses high tensile strength and exceptional tear resistance to withstand physical stress during installation and use but also acts as an effective vapor barrier, widely used as a protective outer layer for duct wrap, duct board, and pipe insulation.
Typical Physical Properties
Physical Properties Value
Alum.Foil 7 um
Basis Weight 118 gsm
Permeance(WVTR) 5.75 ng/N.s
Tensile Strength - MD 225 N/25mm
Tensile Strength - XD 150 N/25mm
Burst Strength 100 N/c㎡
Dimensional Stability less than 0.5%
Emissivity 0.03
Fire Rating Class O - Passed
Glass Cloth Mesh 10x9
Advantages
  • Exceptional Mechanical Strength
    The fiberglass cloth core provides high tensile and tear resistance, ensuring durability and reducing damage risk during installation and service.
  • Reliable Flame Retardancy
    The flame-retardant adhesive and composite design effectively inhibit flame spread, enhancing the insulation system's fire safety.
  • Excellent Vapor Barrier Properties
    The dense foil layer blocks moisture ingress, preventing condensation-induced performance loss and corrosion.
Applications
  • HVAC Systems: Primarily used as the outer facing for duct wrap and duct board, providing protection and acting as a vapor barrier.
  • Pipe Insulation: Used to wrap around various industrial and commercial pipe insulation materials (such as fiberglass or rock wool) serving as a protective and sealing layer.
  • Industrial & Building Insulation: Suitable for the final protective layer on insulation systems for building envelopes and industrial equipment where specific strength or flame retardancy requirements exist.
Flame-retardant Foil-Glass Cloth Facing with 10×9 Mesh Glass Cloth 7 um Al Foil and 118 gsm Basis Weight for HVAC and Pipe Insulation 0 Flame-retardant Foil-Glass Cloth Facing with 10×9 Mesh Glass Cloth 7 um Al Foil and 118 gsm Basis Weight for HVAC and Pipe Insulation 1
